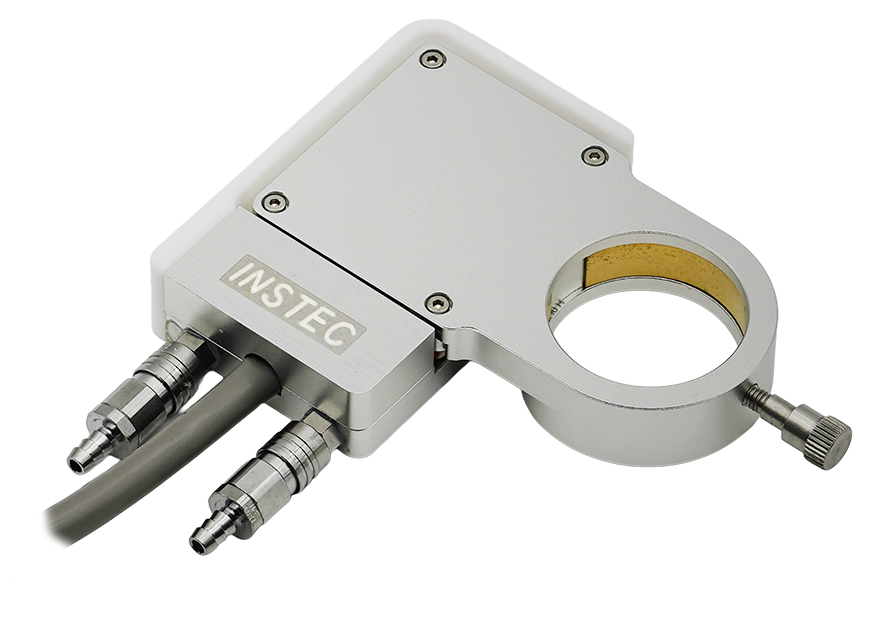

Kerr Magneto-optical measurement stage
-196°C to 400°C
Custom aluminum PCBs and SMA electrical connections
Customizable vacuum probing chamber
Room temp to 1000°C
Independent DC and RF 50Ghz overhead probers
Supports samples up to 50mm x 50mm
XYZR sample positioning
High-temperature probing stage
RT to 1200°C
Four electrical feedthroughs for Pogo pins or electrical Probers
Gas-tight chamber for inert gas purge or rough vacuum
Top and Bottom frame water-cooling
2mm Transmission aperture
Unique benchtop probing station with removable gas-tight sample transfer box
-190°C to 200°C with LN2 cooling system
4 independent electrical probers
Gas-tight chamber for gas purge or very rough vacuum
Removable gas-tight sample transfer box with external temperature sensor
Thermoelectric heating and cooling stage specialized for full-scale liquid crystal research
-30°C to 90°C without LN2
Suppports samples up to 300mm x 300mm
Compatible with Instec ALCT-EO1 for optical property measurments
Customizable vacuum probing chamber
-40°C to 150°C without LN2
Supports wafer samples up to ø4"
Motorized XYZ sample positioning
6 independent overhead probers
Customized HCS302GXY+ Hotstage with 4 coaxial electrical feedthroughs and two DOF sample positioning
-196°C to 400 °C
2-axis sample positioning via external positioners
4 coaxial electrical feedthroughs with convenient internal screw terminal block
Gas-tight lid and feedthroughs with gas-purge capability
Full transmission aperture
Customized HCP408SG+ Gas-tight thermal plate
-80°C to 400°C
Removable sample chamber for convection heating of up to 150mm by 150mm by 40mm samples
Gas-tight chamber with 2 electrical feedthroughs for add-on sensors
Massive 200mm by 200mm obervation window
Custom thermal stage for X-Ray analysis inside vacuum chamber
-100°C to 450°C
Mounts to open port of SAXS vacuum chamber
Accomodates 25mm diameter silicon wafer samples
3mm diameter transmission aperture
Customized HCS321Gi+ gas-tight thermal stage for inverted reflection microscopy
Room Temp to 230°C
Removable heating block for easy sample loading
4.5mm minimum working distance
Custom mounting adapters for Piezo XY stage and Nikon Ti2U
Customized HP1000V+ vacuum tight thermal plate
Room Temp to 1000°C Range
Unique horizontal sample area with spring-loaded sample holder
Supports cubic samples from 20mm to 25mm
Horizontal 31.75 diameter observation window
Dual KF vacuum ports with vacuum tight chamber
Complete frame cooling via C100W water circulator
Customized TS102XY+ thermal stage with unique removable pressure cell
Pressurize sample area up to 50 PSI
Temperature control from -20°C to 120°C without LN2
Removable sample chamber with integrated secondary temperature sensor
Customized TC106SF+ thermoelectric wafer chuck
Temperature controlled from 25 °C to 100 °C under 40W heating load
Gold-plated 150mm by 150mm sample area with custom 4-zone vaccum channel layout
Electrically conductive sample area with BNC input for sample biasing
Customized TP108SG+ thermoelectric heating and cooling plate
Custom PCB wire feedthrough
-20°C to 160°C temperature range
Massive 200mm by 200mm sample area
Gas-tight lid with 200mm by 200mm viewing window
Quick-connect gas purge ports
Supports samples up to 15mm tall with minimal vertical temperature gradient
Re-sealable feedthroughs for adding external thermocouples or KF flanges
Customized HP1000G+ hostage for unique capillary experiments
Room Temperature to 1000°C
20mm by 20mm sample area
4 sided optical access (4 windows total)
Accomodates custom Silicon carbide capillary tube
Inner cover for maximum vertical temperature uniformity
Ultra-wide 45 degree viewing windows on top and bottom faces
Supports vertical or horizontal mounting configurations
Gas-tight lid
Complete frame cooling inlcuding base, lid and windows
Customized HCC218S+ with massive 200mm by 200mm Silicon carbide sample area
Room temperature to 200 °C
Sample cooling capability allows for optional integration with LN2 cooling system
4 vaccum hold-down zones to accomodate multiple sample sizes
Customized mounting holes along sample area perimeter
Water frame cooling for protecting work surfaces during operation
Customized TC102+ with a custom array of vacuum holes, capable of securing textiles and other abnormal samples.
40mm by 40mm square sample area.
Thermielectric heating/cooling elements provide temperature control from -20°C to 120°C with optional chiller upgrade.
Requires water frame cooling
Customized HCP402SG-PM+ probing chamber
-196°C - 200°C with liquid nitrogen cooling option
8 coaxial electrical feedthroughs with manually adjustable probers
Large 2" square sample area with specially designed spacer array for coin-cell batteries
KF-15 vaccum port for chamber evacuation or gas purge
HCP621G-PM+ with customized Elipsometry lid
Temperature controlled electrical probing from -190°C - 600°C with liquid nitrogen cooling option
KF 16 flanges for chamber evacuation or gas-purge
4 co-axial electrical feedthroughs with manually positioned electrical probers
Simple IRM Microscopy and spectroscopy stage
Dual quick-connect gas fittings
Thumbs screws for easy installation onto microscope stage
Sealed chamber with Gas-tight capability
4 coaxial electrical feedthroughs
-190°C - 600°C with liquid nitrogen cooling option
Convenient internal screw terminals
35mm square sample area
Extra-Wide 55mm diameter observation window
Low-noise LVDC heater with LN2 cooling ports
Gas-Tight lid
Custom mounting plate
Custom high pressure cell
RAMAN Spectroscopy
up to 150 bar
-190°C - 400°C(1bar)
