High Temperature RF Probing Chamber HP1000V-MPS+
Customizable vacuum probing chamber
Room temp to 1000°C
Independent DC and RF 50Ghz overhead probers
Supports samples up to 50mm x 50mm
XYZR sample positioning
HP1000V-MPS
High temperature 1000C probing station with external prober micromanipulators and gas purge or vacuum chamber
TP104V-MPS+ // INS2301501
Customizable vacuum probing chamber
-40°C to 150°C without LN2
Supports wafer samples up to ø4"
Motorized XYZ sample positioning
6 independent overhead probers
TP102V-MPS Thermoelectric Probe Station
Thermoelectric probe station with externally manipulated probers and vacuum/gas-purge capability
-40°C to 120°C standard temperature range (-40°C to 150°C available with optional upgrade) without the need for liquid nitrogen
Customizable number of probers, feedthroughs and temperature sensors

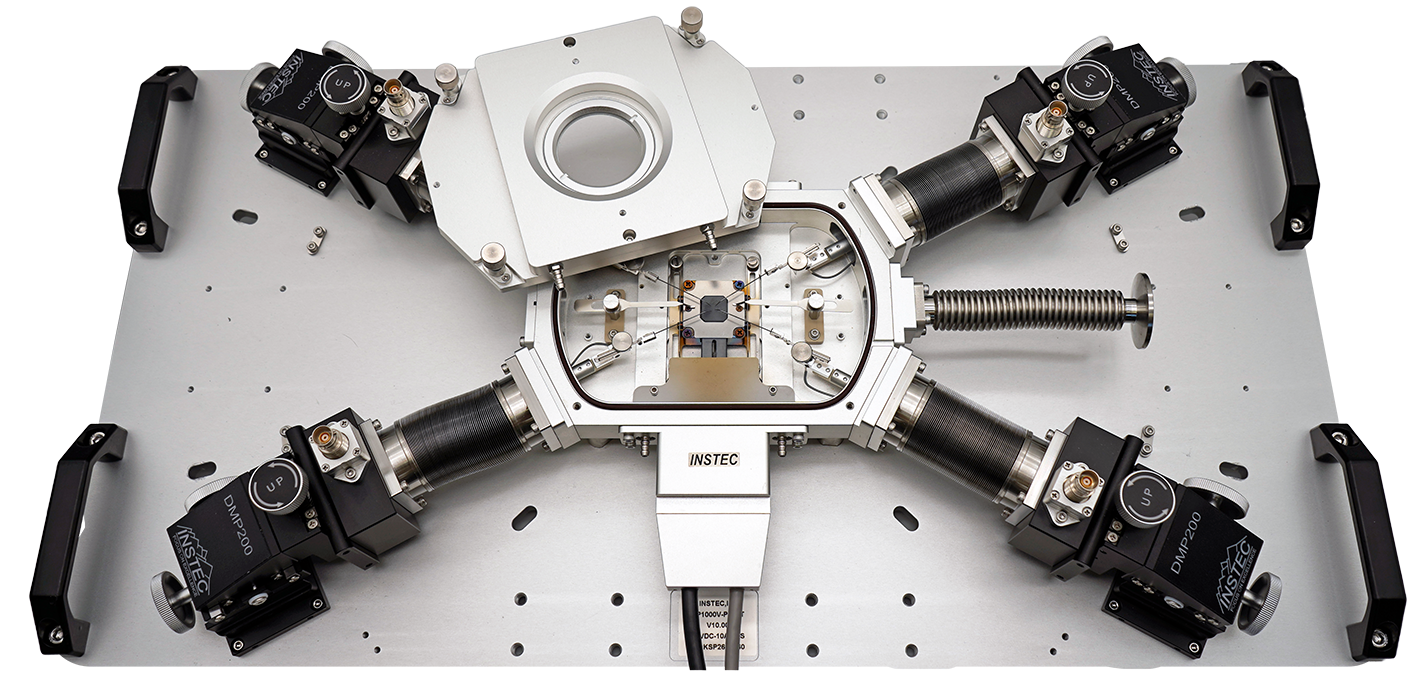

HCP421V-MPS Vacuum Chamber Probe Station
Tabletop design with small footprint integrates with modern instruments and benches
-190°C - 400°C (600°C option available, see HCP621G-MPS)
Ø26 mm hexagonal thermal block (optional upgrade for larger sample area available)
Sealed chamber with gas purging and/or vacuum capabilities
4+ independent electrical probes with remote mechanical positioning
Up to 6+ standard probers available (Ask about HCP421V-MPS6)

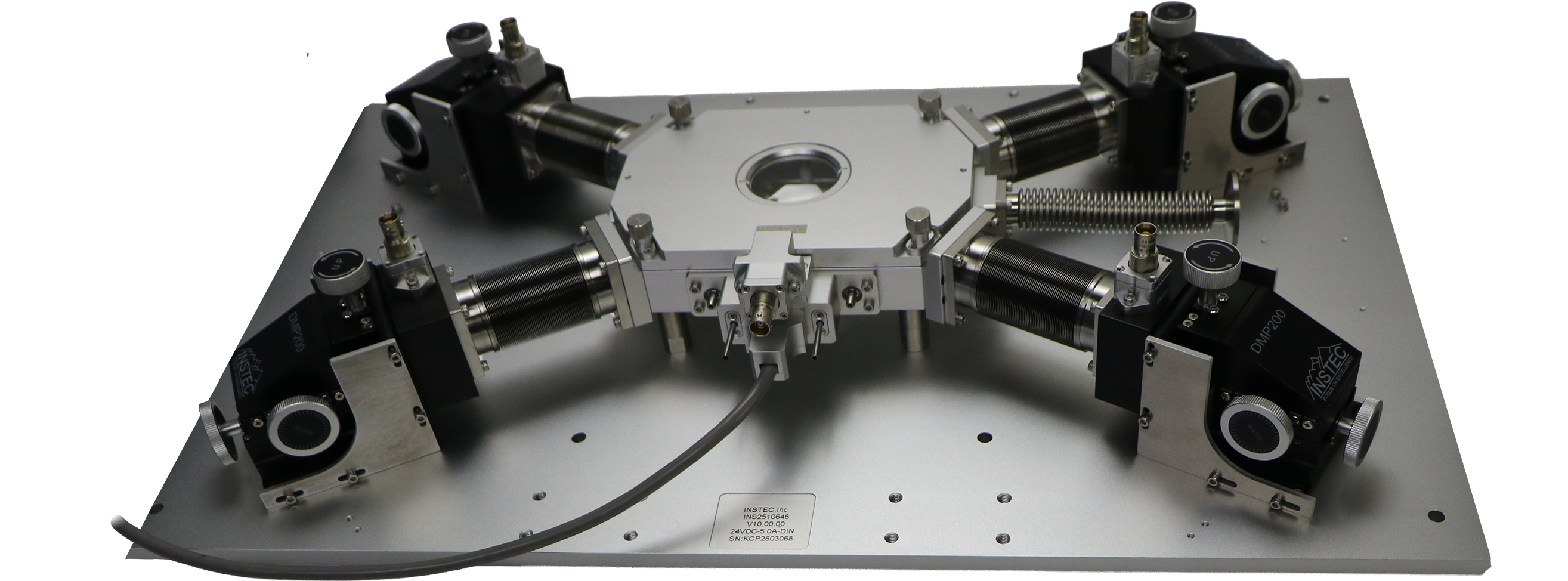

VACUUM BENCHTOP PROBE STATIONS
Tabletop vacuum probe stage
Variable sample size
Gas purging or vacuum capability
4 remote positioning electrical probes
-190°C - 1000°C
