Benchtop probe station
RT to 1000°C Temperature Range
Sealed chamber with gas purging and/or vacuum capabilities
13x13mm Sample Area
4+ independent electrical probes with remote mechanical positioning
Up to 6+ standard probers available
HP1000V-PS1 Benchtop Probe Station
PRODUCT INQUIRY -
-
DESCRIPTION

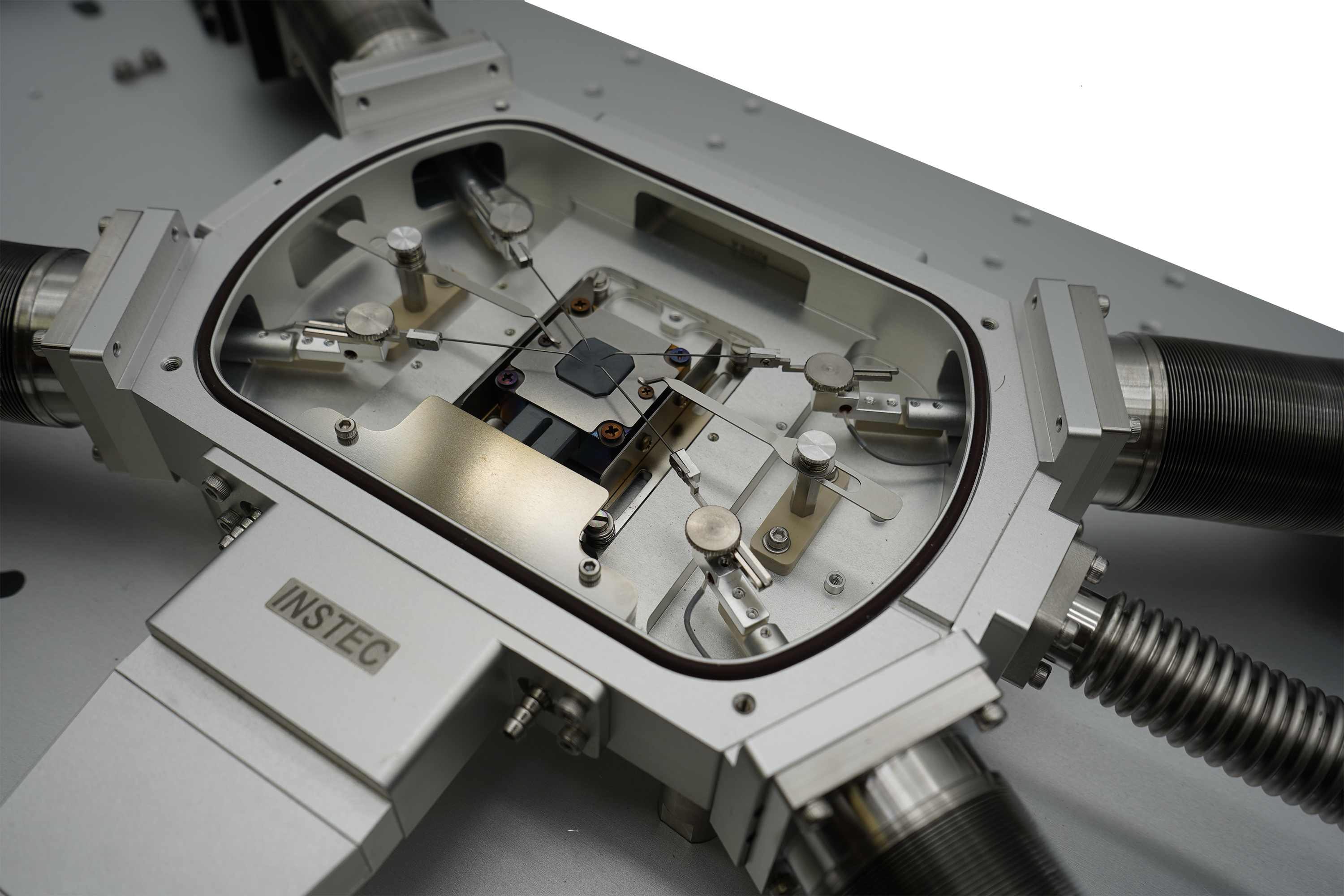

The HP1000V-PS1 is an advanced and highly customizable benchtop probing station with modular components to fit a variety of needs. The base model includes a 1000°C heating core capable of precision temperature control under vacuum or ambient conditions. Four independent electrical probers with XYZ micromanipulators allow for prober movement while maintaining vacuum.

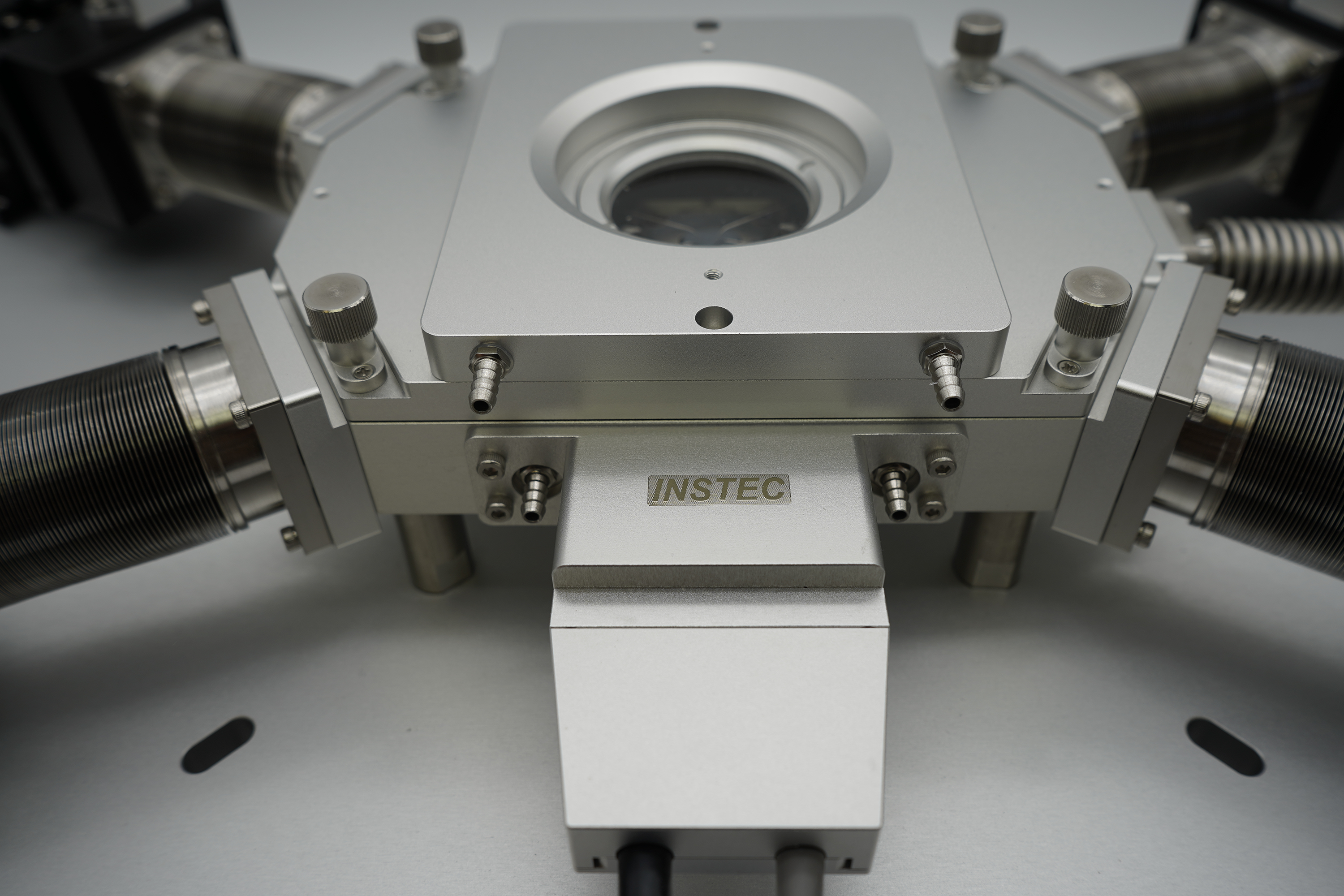

The 45mm viewing aperture on the chamber lid provides excellent optical access of the entire sample area, and is compatible with a wide range of optical analysis tools. The HP1000V-PS1 comes affixed to a heavy-duty aluminum baseplate with mounting points for tube-microscope systems, and handles for portability. An anti-vibration table or VVR1 vibration reducer is recommended, but not strictly required depending on the vacuum system.
Upgrade to the HP1000V-PS1+ fully customizable model to add or remove probers, change electrical feedthrough types, add RF probers with rotational control, high vacuum compatibility, larger sample areas, and more!
For more information on INSTEC probing solutions, check out our full Electrical Probing Solutions Catalog!
-
THERMAL FEATURES
Temperature Control
mK2000 with LVDC output controller
Thermal Block
Electrically Insulated Aluminum Nitride
Minimum Temperature
Room temperature, no active cooling
Maximum Temperature
1000°C
Temperature Sensor
S type thermocouple (+-0.1°C resolution)
Maximum Heating Rate
+50°C per minute <850°C, +15°C per minute >850°C
Maximum Cooling Rate
Passive cooling via convection/ gas-purge, rates dependent on experiment configuration
Temperature Resolution
0.1°C
Temperature Stability
±0.1°C
Power supply
Universal power input - LVDC mK2000B
Software
Windows software to record and export temperature-time data
-
OPTICAL FEATURES
Optical Access
Reflected and emitted light capability, (transmission upon request)
Optical Window
Removable and exchangeable windows permit full-spectrum transparency
Minimum Objective Working Distance
12 mm
Window Size
Ø50mm X 2mm
Aperture Size
Ø45mm
Top Viewing Angle
±57.0° from normal
Window Cooling
Integrated external window cooling fixture
Window Material
Quartz (Standard) with options for Sapphire, CaF2, etc...
-
STRUCTURAL FEATURES
Sample Area
13x13mm
Chamber Height
8.5 mm
Atmosphere Control
Sealed chamber with vacuum capability to control humidity, condensation, and oxidation. Standard vacuum level to 9.9x10^-3 mBar vai KF25 flange (can be swapped for other sizes)
Sample Loading
Sample loading requires lid removal
Prober Positioning
10x10x6 mm fine travel with Vernier XYZ dials for remote manipulation in sealed chamber via vacuum bellows
Frame Cooling
Integrated frame and lid water cooling via recirculating chiller system (required, sold separately)
Mounting
Horizontal optical table mounting options for standalone breadboard or direct microscope mounting
Frame Dimensions
700X400mm
Weight
12.5kg
