Benchtop probe station
-190°C to 400°C Temperature Range
Gas purging and/or vacuum capabilities
Ø26mm inscribed hexagon sample area
4+ probes with remote mechanical positioning
Up to 6+ standard probers available
-
HCP421V-PS1 Hot/Cold Modular Probing Station
PRODUCT INQUIRY -
-
DETAILS
The HCP421V-PS1 is an advanced and highly customizable benchtop probing station with modular components to fit a variety of needs. This station has a temperature range of -190°C to 400°C under vacuum or ambient conditions. If higher temperature ranges are needed, please inquire about our HCP621G-PS1 which substitutes vacuum capability for an increased upper temperature limit.

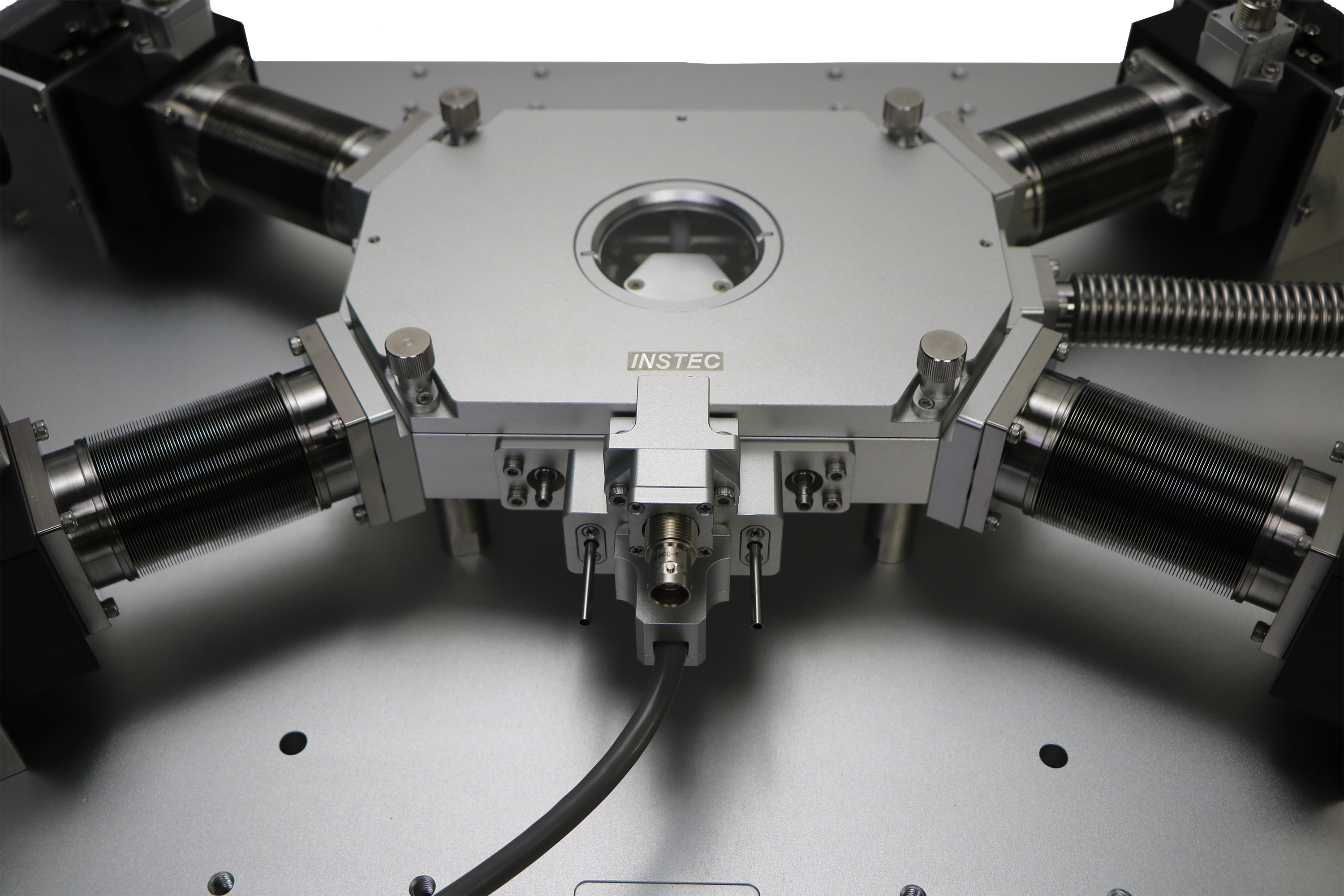

Four independent electrical probers with XYZ micromanipulators allow for prober movement while maintaining vacuum. The 45mm viewing aperture on the chamber lid provides excellent optical access of the entire 26mm hexagon sample area, and is compatible with a wide range of optical analysis tools. The HCP421V-PS1 comes affixed to a heavy-duty aluminum baseplate with mounting points for tube-microscope systems, and handles for portability. An anti-vibration table or VVR1 vibration reducer is recommended, but not strictly required depending on the vacuum system.
Upgrade to the HCP421V-PS1+ fully customizable model to add or remove probers, change electrical feedthrough types, add RF probers with rotational control, high vacuum compatibility, larger sample areas, and more!
For more information on INSTEC probing solutions, check out our full Electrical Probing Solutions Catalog!
-
THERMAL FEATURES
Temperature Control
mK2000 with programmable precision LVDC PID method to minimize electrical noise
Thermal Block
Silver
Minimum Temperature
-190°C (with optional liquid N2 cooling)
Maximum Temperature
400°C for vacuum version (600°C for gas tight version)
Temperature Sensor
100 Ω Platinum RTD
Maximum Heating/Cooling Rate
±30°C/min
*Up to +150°C/min available by request
Minimum Heating/Cooling Rate
±0.01°C/min
Temperature Resolution
0.01°C (RTD)
Temperature Stability
±0.05°C (>25°C), ±0.1°C (<25°C)
Power supply
Universal power input - 200W max (not including LN2 system or water cooling accessory)
Software
Windows 10/11 software to record and export temperature-time data
SCPI interface with programming SDK avialable
-
OPTICAL FEATURES
Optical Access
Reflection only (transmission available with + models)
Optical Window
Removable and exchangeable windows permit full-spectrum transparency
Minimum Objective Working Distance
12 mm
Window Size
Ø50mm X 2mm
Aperture Size
Ø45mm
Top Viewing Angle
±50.0° from normal
Window Cooling
Integrated external window cooling fixture
Window Material
Quartz (Standard) with options for Sapphire, CaF2, etc...
-
STRUCTURAL FEATURES
Sample Area
13x13mm
Chamber Height
8.5 mm
Atmosphere Control
Sealed chamber with vacuum capability to control humidity, condensation, and oxidation. Standard vacuum level to 9.9x10^-3 mBar vai KF25 flange (can be swapped for other sizes)
Sample Loading
Sample loading requires lid removal
Prober Positioning
10x10x6 mm fine travel with Vernier XYZ dials for remote manipulation in sealed chamber via vacuum bellows
Frame Cooling
Integrated frame and lid water cooling via recirculating chiller system (required, sold separately)
Mounting
Horizontal optical table mounting options for standalone breadboard or direct microscope mounting
Frame Dimensions
700X400mm
Weight
12.5kg
