Enable frame cooling or thermoelectric stage cooling
Multiple models to optimize cooling performance for each application
All chiller models can be used for frame cooling.

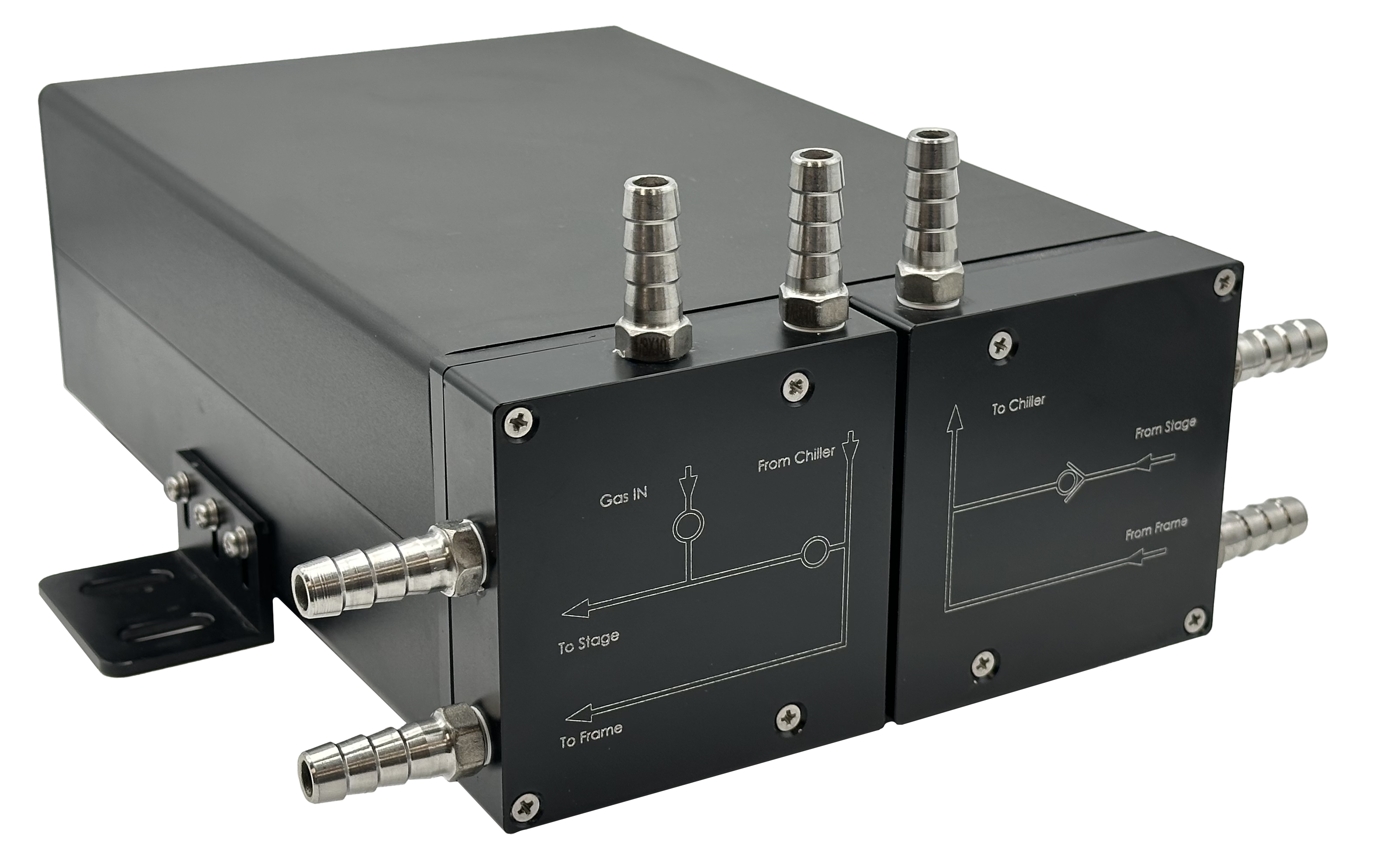

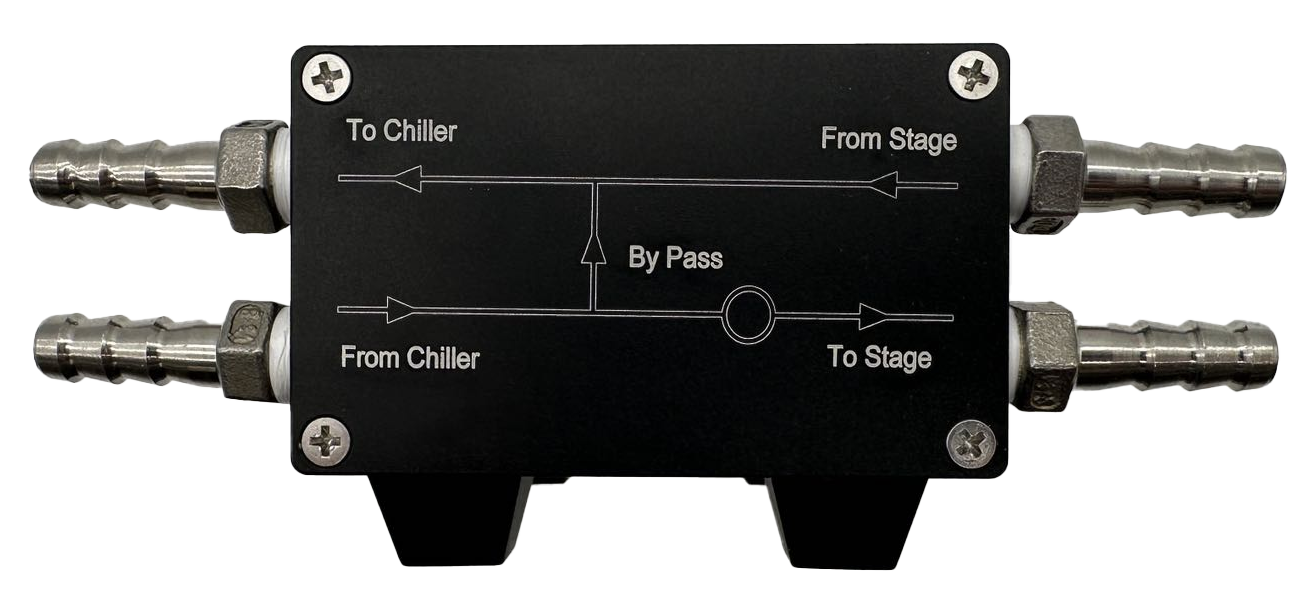

CW500, and C610W require the FVC11 coolant flow control system for thermoelectric stage cooling using the mK2000 out3 port
C100W / CW5000 / C6100W CHILLERS
PRODUCT INQUIRY -
-
FEATURES
• Recirculating chillers provide powerful water cooling to keep the outside of Instec Stages/Plates/Chucks cool to the touch even when operating at maximum temperature
• All chiller models can be used for frame cooling
• CW5000, and C6100W require the FVC11 coolant flow control system for thermoelectric stage cooling using the mK2000 out3 port
-
SPECIFICATIONS
Chiller
Dimensions
Weight
Temperature Range
C100W
20.7cm x 23.5cm x 24.5cm
3.4 kg
20°C to 50°C

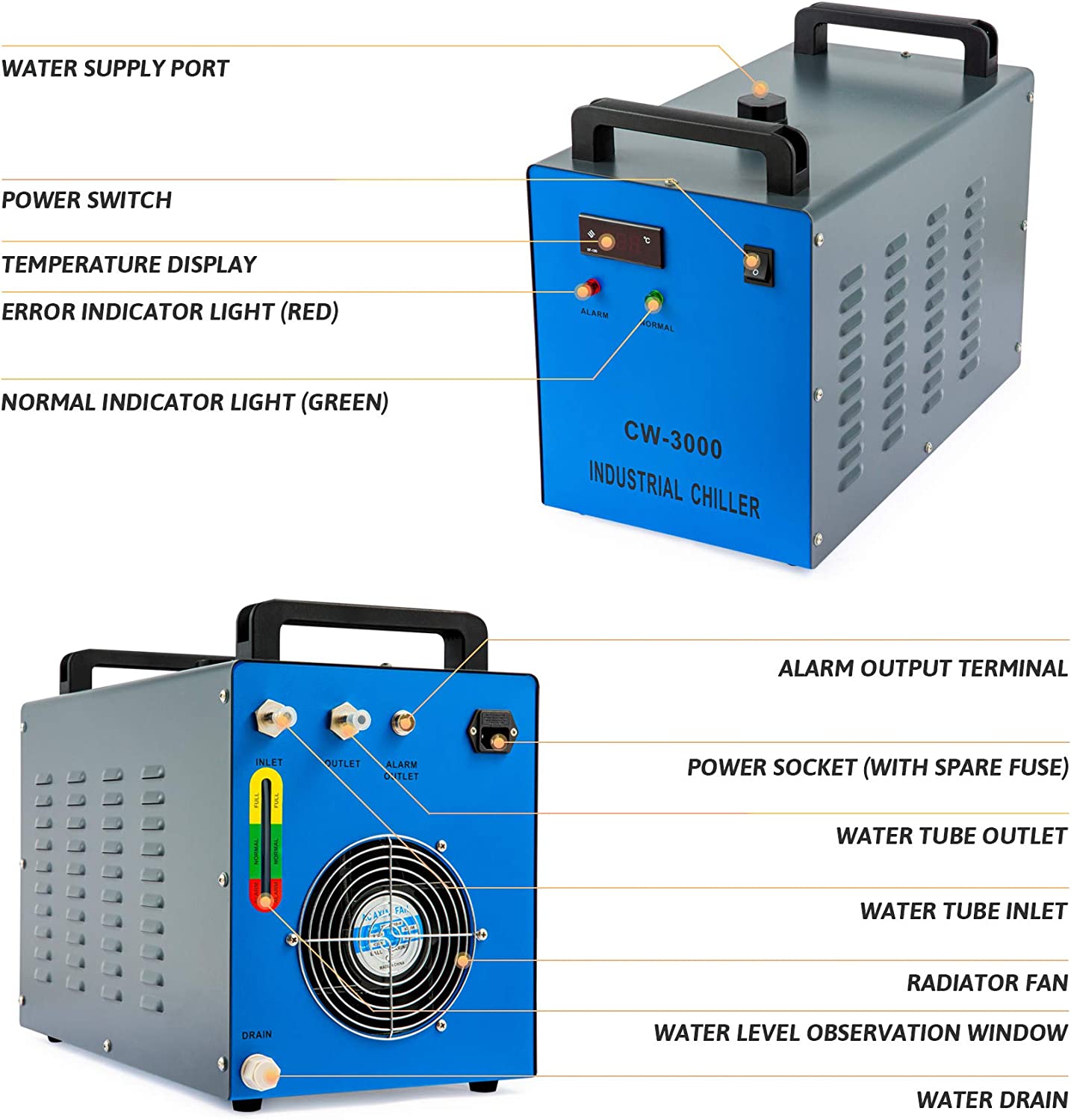

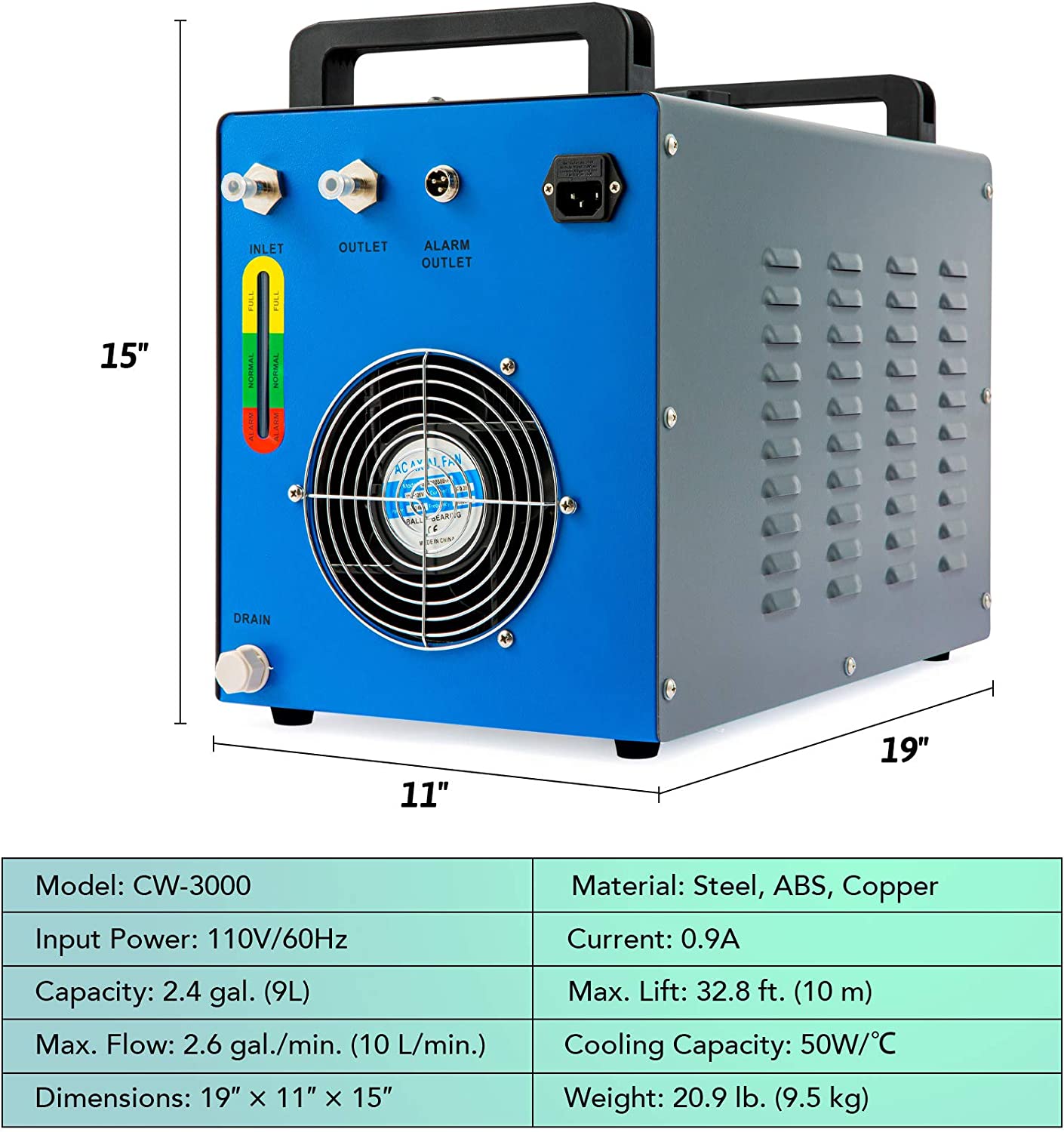

C3000W/C3000W-R
47cm x 37cm x 27cm
14.5 kg
20°C to 50°C

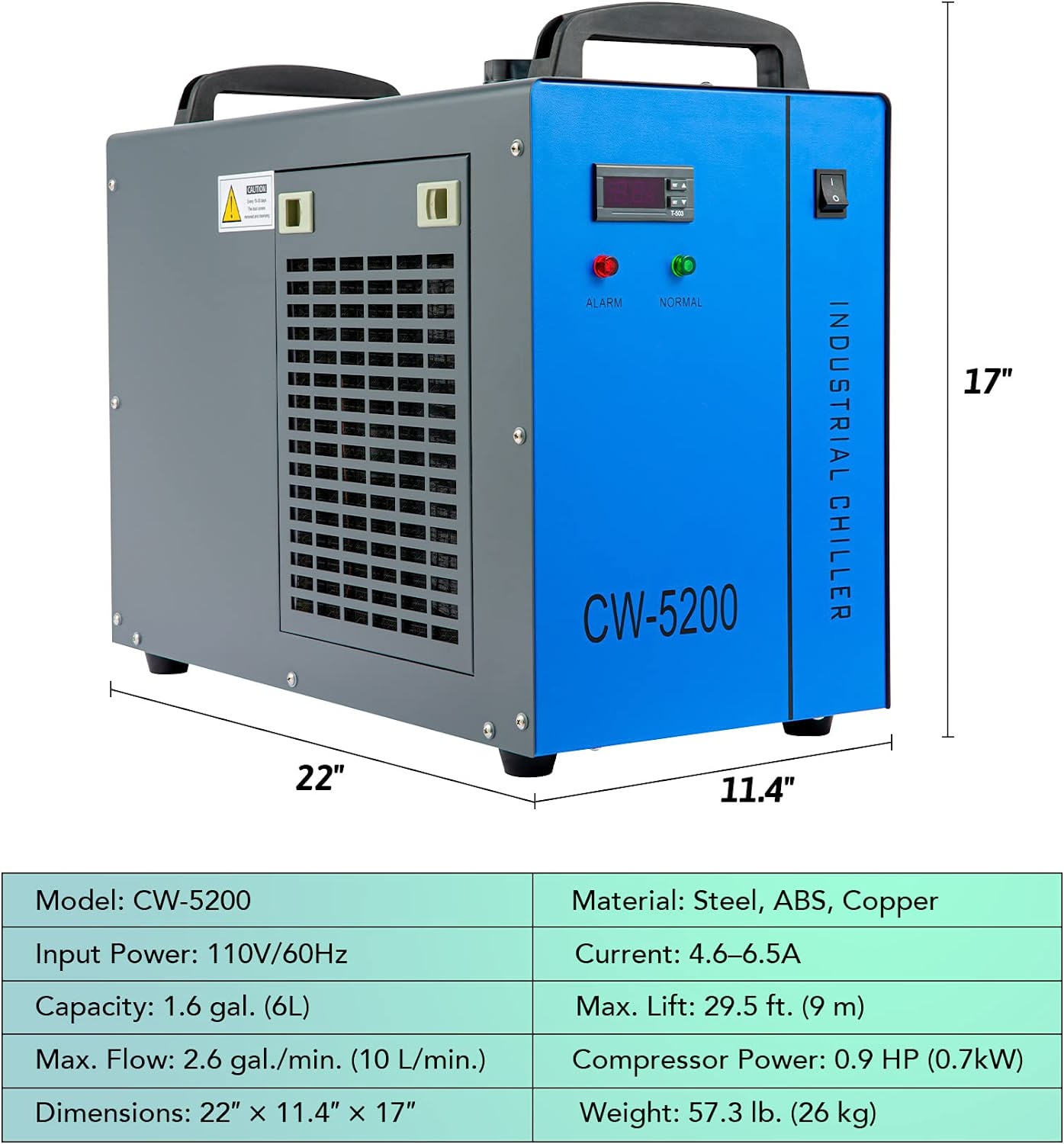

CW5000
56cm x 46cm x 28cm
37 kg
1°C to 50°C
C6100W
89cm x 71cm x 48cm
65 kg
1°C to 50°C
