DESCRIPTION

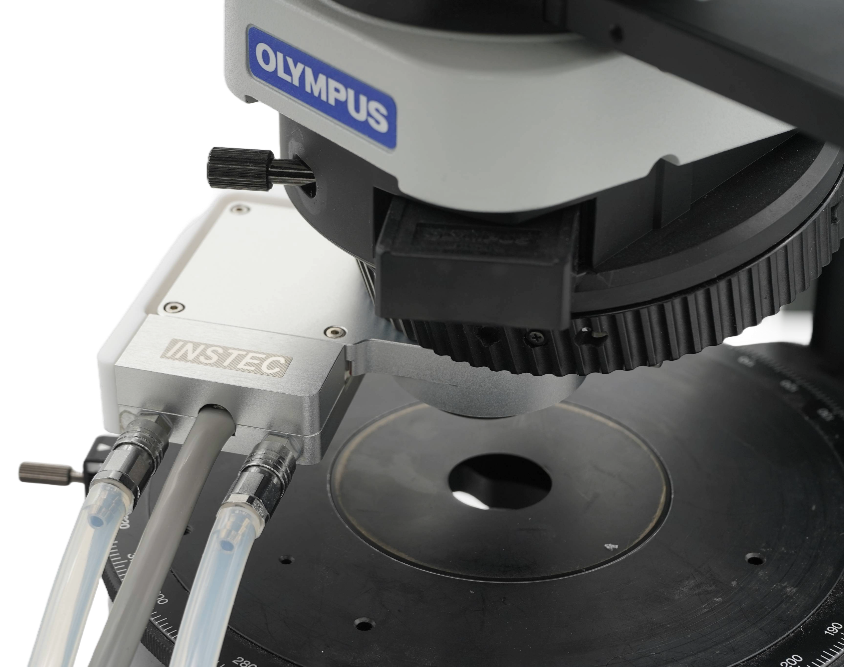

The TP102-OBJ is an objective temperature controller that provides precise heating and cooling to maintain sample temperature during oil immersion microscopy. An adjustable mounting mechanism accommodates multiple objective sizes, making the system easy to integrate into existing microscopy platforms. Thermoelectric (Peltier) heating and cooling provide bidirectional temperature control from -20°C to +90°C, while the mK2000 Precision Temperature Controller delivers accurate PID temperature regulation and seamless integration with other Instec thermal products.

THERMAL FEATURES

Temperature Control	*mK2000* with bidirectional LVDC output
Thermal Block	Clear anodized aluminum
Minimum Temperature	-20°C with standard water circulator
Maximum Temperature	90°C
Temperature Sensor	100 Ω Platinum RTD
Maximum Heating Rate	+20°C per minute at 37°C
Maximum Cooling Rate	-10°C per minute at 37°C
Minimum Heating and Cooling Rate	±0.01°C per minute
Temperature Resolution	0.01°C
Temperature Stability	±0.05°C
Power supply	Universal power input – 150W max (Not including water-cooling accessories)
Software	Windows software to record and export temperature vs time data

Objective Diameter Options	Ø29.5mm, Ø30.5mm, Ø32mm, or custom
Frame Cooling	Integrated TEC cooling when paired with CW3000 Chiller.
Frame Dimensions	100mm x 90mm x 17mm
Weight	400g

TP102-OBJ
