Single view tube microscope
4X-80X high magnification objective
HD 4K at 30FPS and 1080P at 60FPS
Precision manual radial and polar movement
-

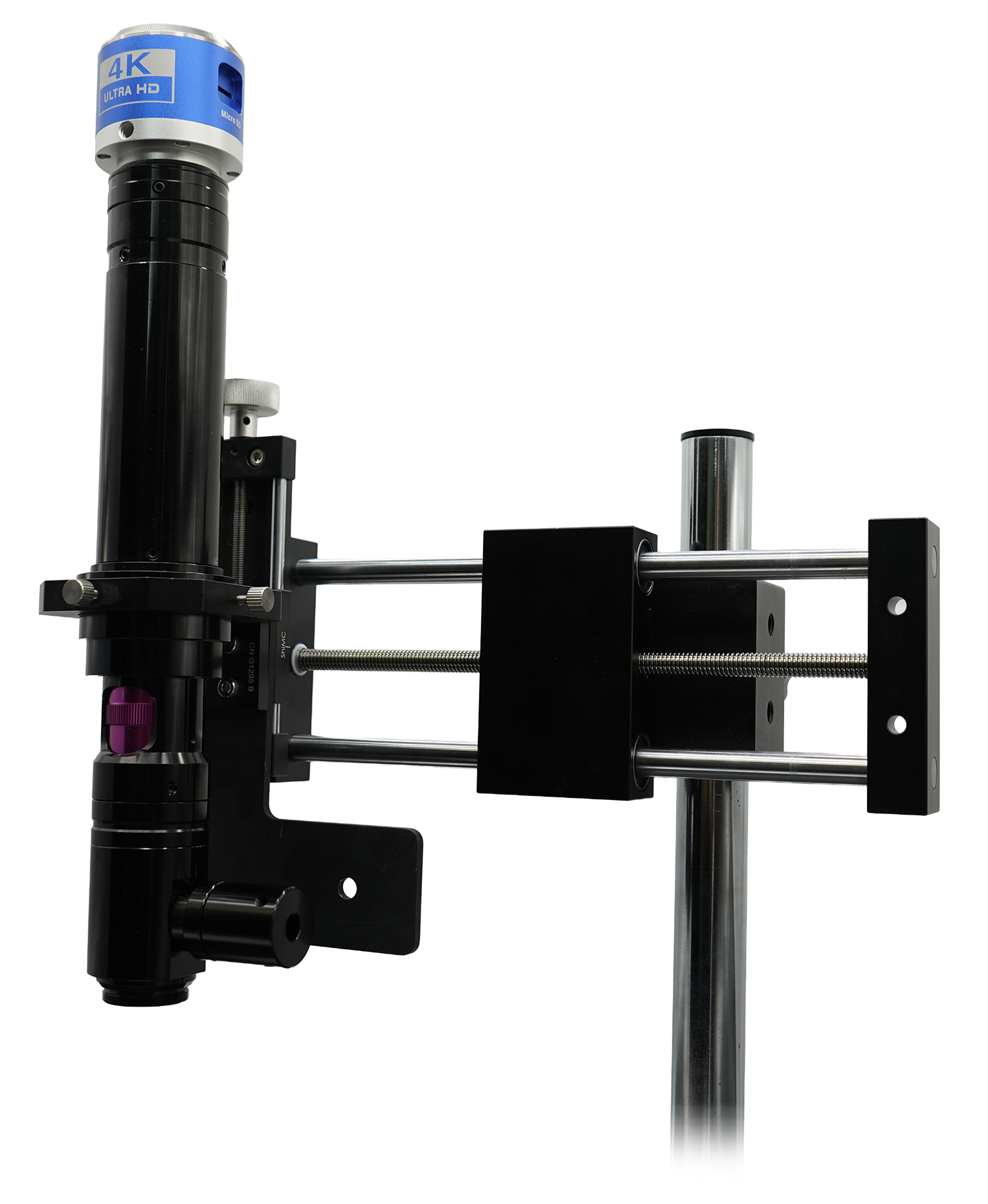

PSM-TM2 4K Tube Microscope
PRODUCT INQUIRY
-
DESCRIPTION
The PSM-TM2 is a single-FOV microscope system ideal for probe landing and sample positioning. The microscope armature includes fine Polar and Radial position adjustment, and supports coaxial microscope lighting. The PSM-TM2 utilizes a C-mount 1/1.8” sensor microscope camera capable of imaging at resolutions of up to 4K and is easily connect to a PC or an external monitor using the provided USB-C to USB-A and HDMI cables. The magnification id adjustable in a range from 0.7x to 4x via the inline magnification dial, and the system also supports standard thread microscope lenses for increasing magnification.
For customers interested in a dual-FOV system allowing for simultaneous macro and micro imaging, please see our PSM-TM3 option.
-
OPTICAL FEATURES
Microscope
Optical Magnification Range
0.7x to 4.5x (tube microscope)
Field of View
9.14mm x 6.86mm (0.7x) to 1.42mm x 1.07mm (4.5x)
Working Distance
90mm ± 2mm
Digital Camera
Image Sensor
IMX334 1/1.8” sensor
Exposure Time
0-33ms
Supported Formats
HDMI à 3840*2160@30FPS or 1920*1080@60FPS
USB C à 1920*1080@60FPS
Power Requirements
5VDC 1A per camera
