Dual field of view tube microscope
0.7X-4.5X low magnification objective and 4X-80X high magnification objective
HD 4K at 30FPS and 1080P at 60FPS

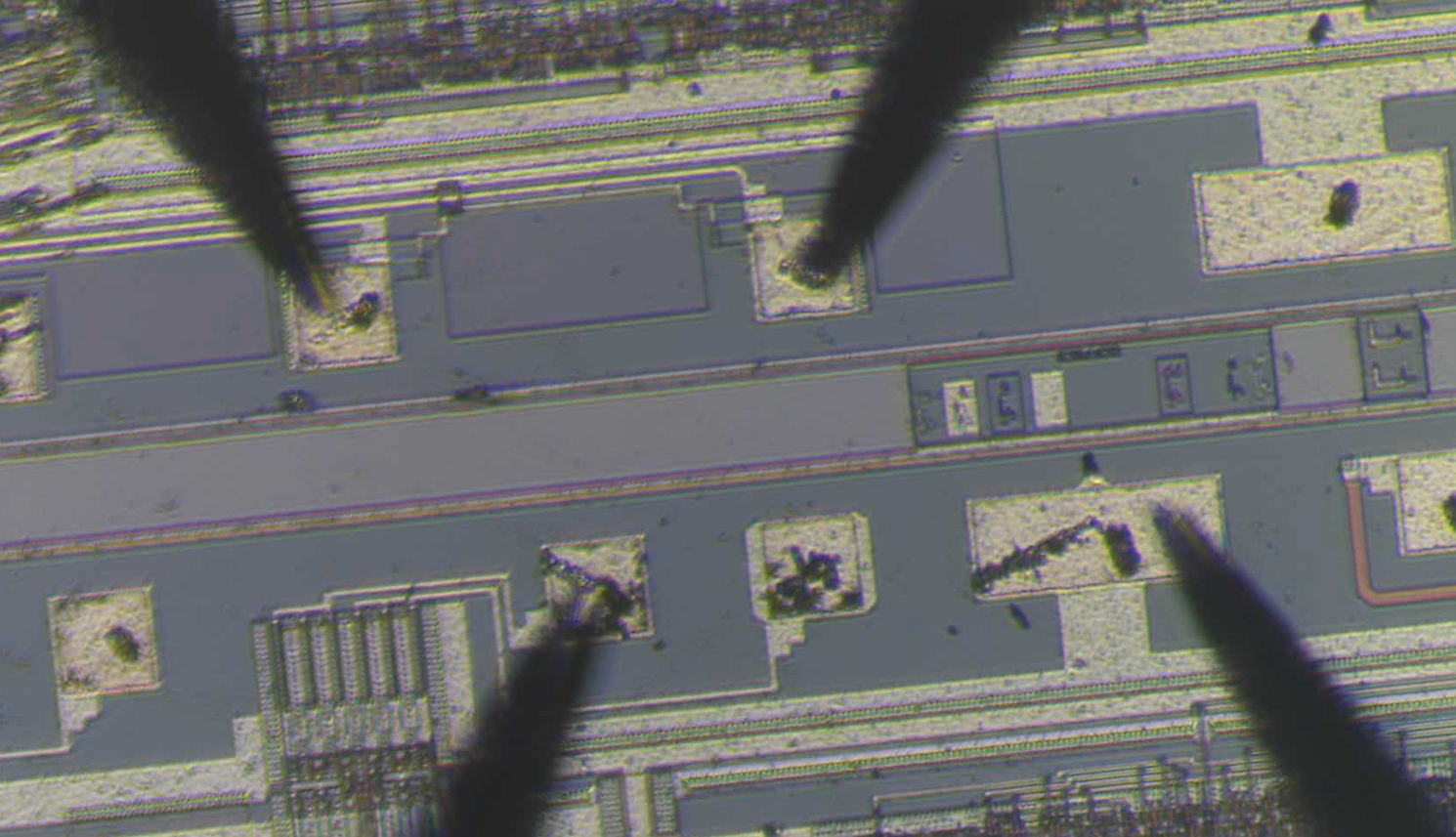

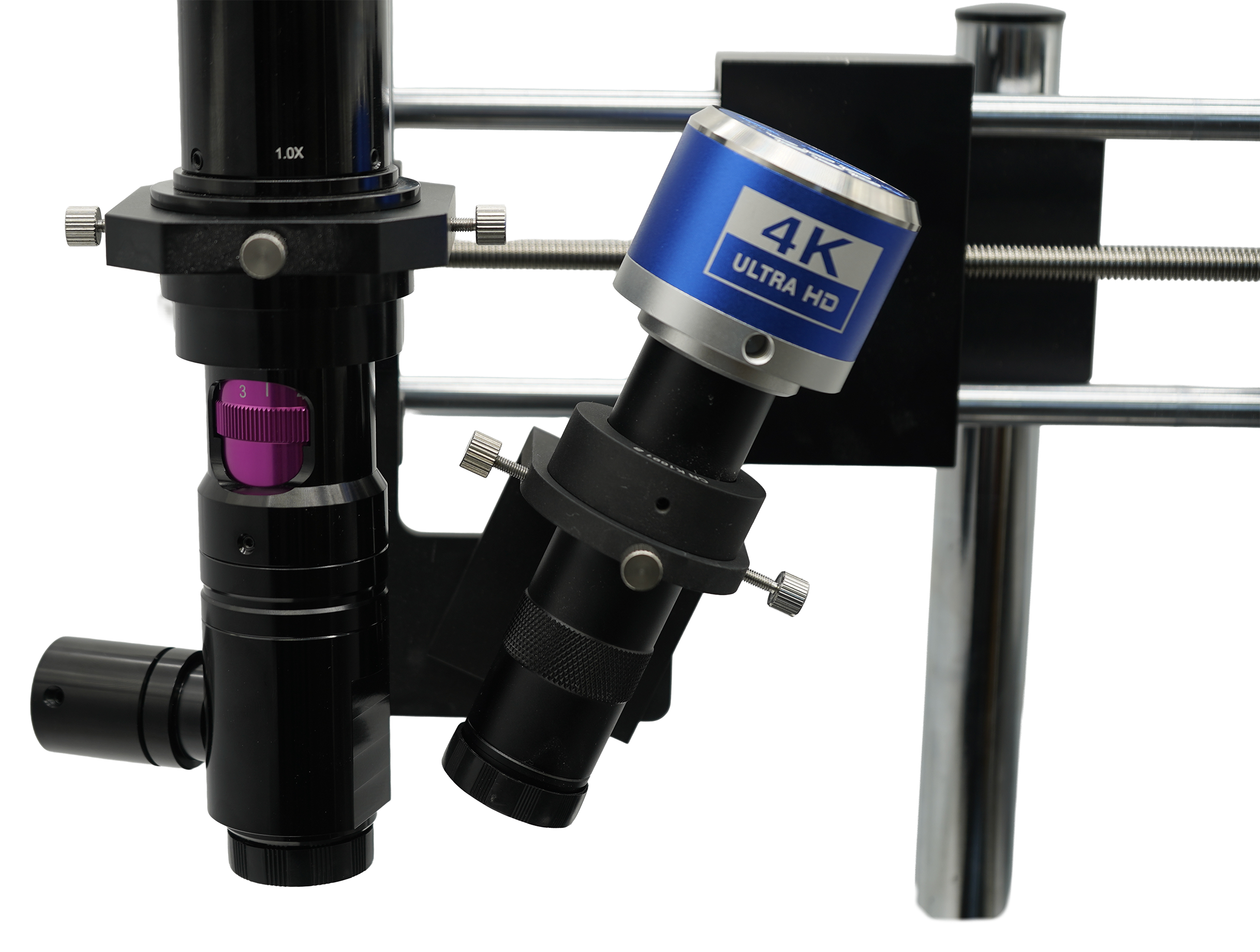

Precision manual radial and polar movement of the optical objective for ease of use with multiple device samples

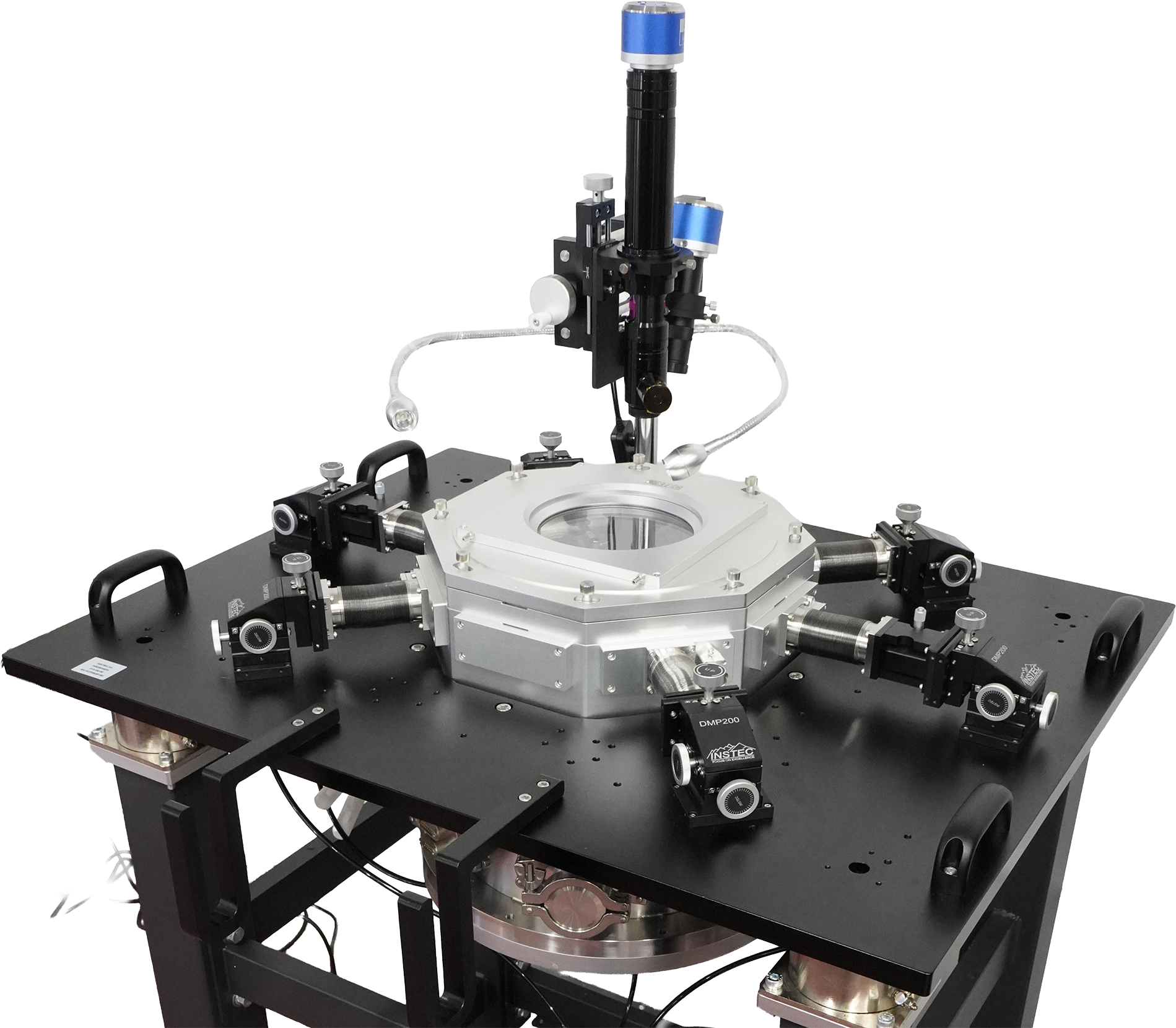

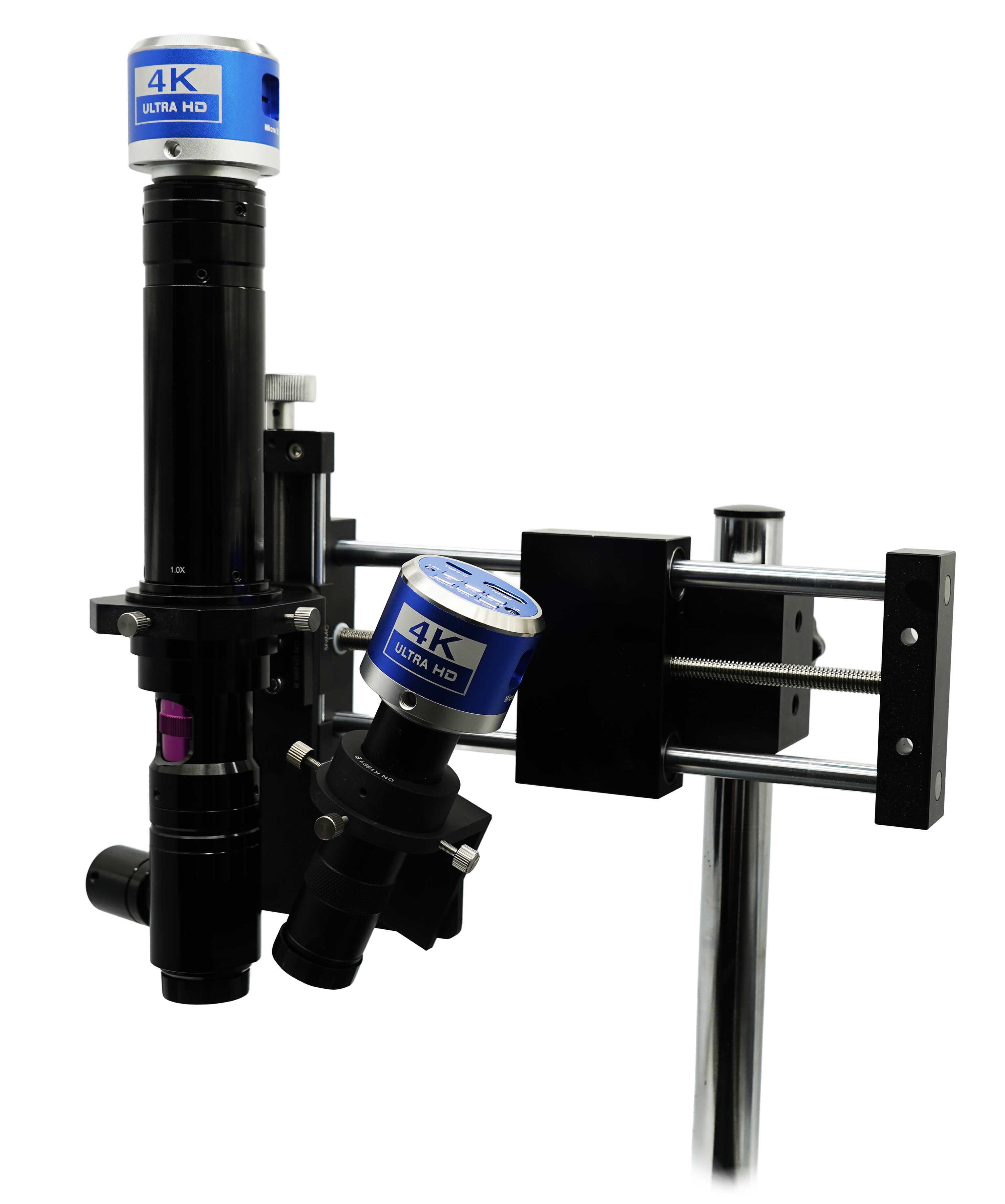

PSM-TM3 4K Tube Microscope
PRODUCT INQUIRY -
-
DESCRIPTION

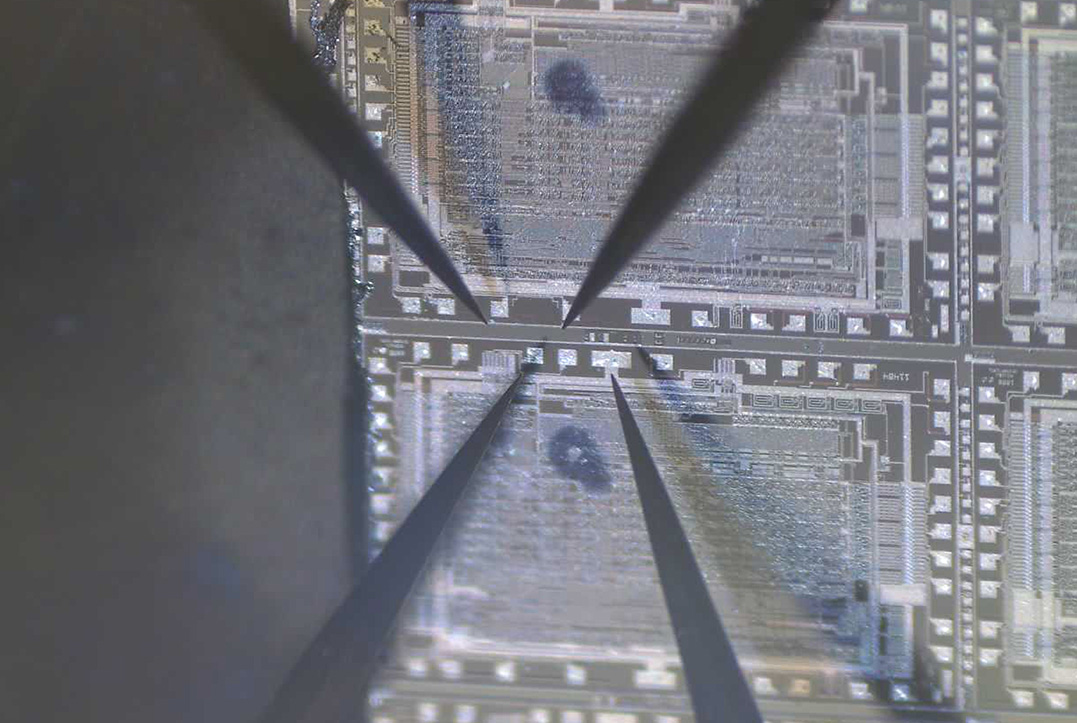

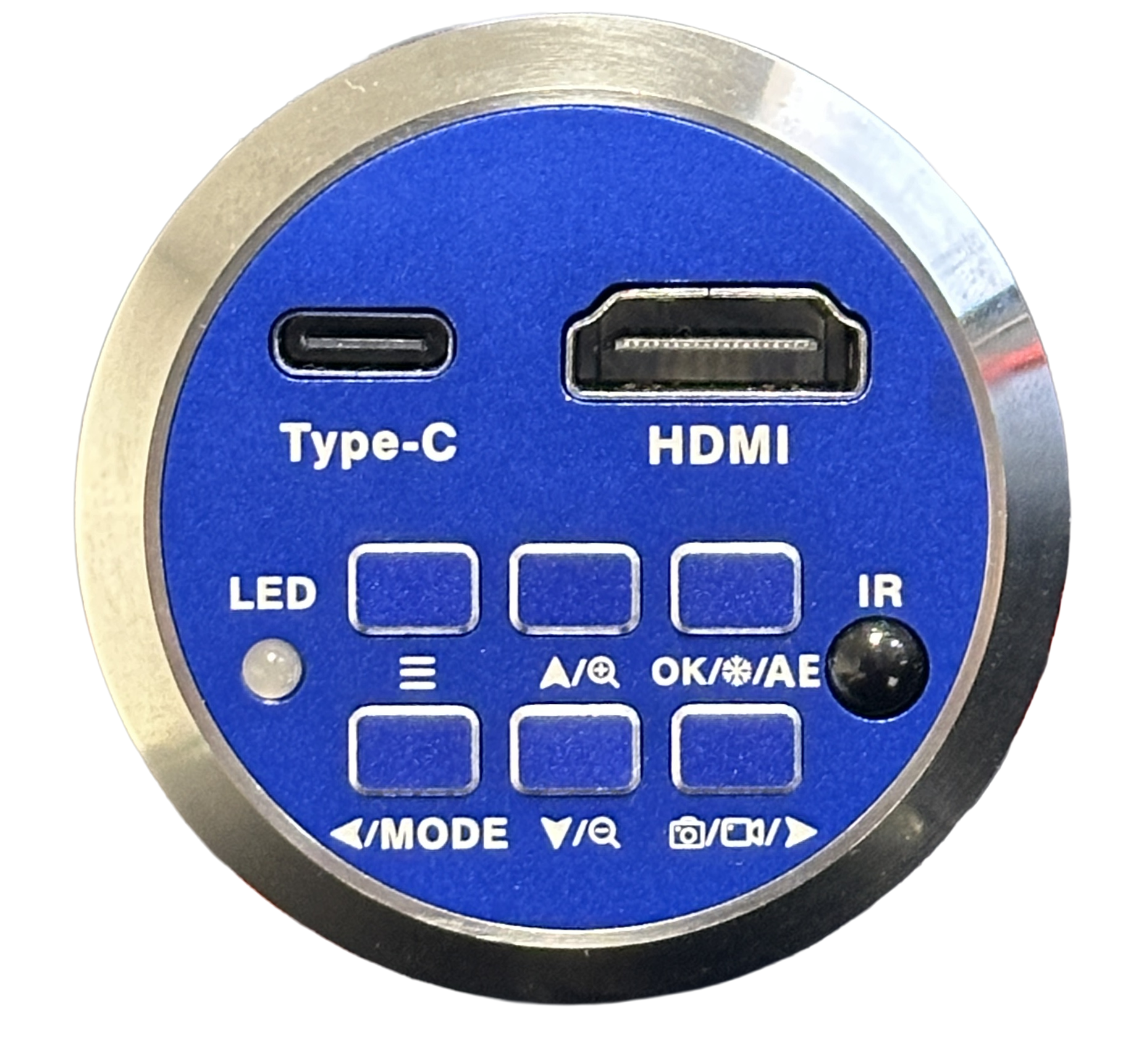

The PSM-TM3 is a dual-FOV microscope system which provides simultaneous imaging of Macro and Micro views - ideal for probe landing and sample positioning. The microscope armature includes fine Polar and Radial position adjustment, and supports coaxial microscope lighting. The PSM-TM3 utilizes two C-mount 1/1.8” sensor microscope cameras capable of imaging at resolutions of up to 4K. The main microscope camera has adjustable magnification range from 0.7x to 4x the inline magnification dial, and the secondary microscope camera has an adjustable FOV up to 12mm x 19mm, great for macro-area imaging. The primary tube microscope also supports standard thread microscope lenses for increasing magnification. Both microscope cameras easily connect to a PC device using the provided USB-C to USB-A cables, or can output to a monitor/display with an HDMI port for the highest quality video output.
-
OPTICAL FEATURES
Primary Microscope
Optical Magnification Range
0.7x to 4.5x (tube microscope)
Field of View
9.14mm x 6.86mm (0.7x) to 1.42mm x 1.07mm (4.5x)
Working Distance
90mm ± 2mm
Secondary Microscope
Optical Magnification Range
0.4x to 1.0x magnification
Field of View
12mm x 19mm (0.4x) to 4.8mm x 3.6mm (1.0x)
Working Distance
95mm to 167mm
Digital Cameras
Image Sensor
IMX334 1/1.8” sensor
Exposure Time
0-33ms
Supported Formats
HDMI à 3840*2160@30FPS or 1920*1080@60FPS
USB C à 1920*1080@60FPS
Power Requirements
5VDC 1A per camera
