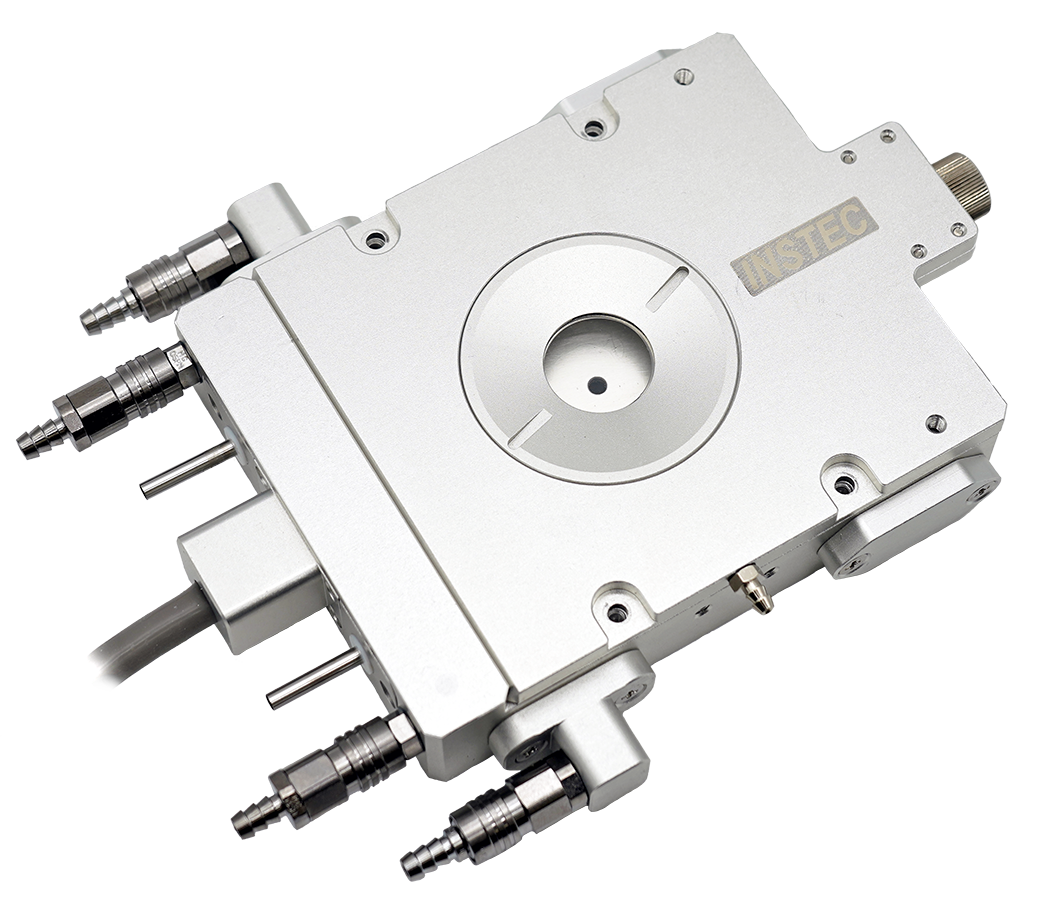

Hot/Cold Stage for FTIR microscopy
-190°C - 600°C with liquid nitrogen cooling option
24 mm × 24 mm sample area with wide angle viewing aperture
Gas-tight chamber
HCS601G-IRM
PRODUCT INQUIRY -
-
THERMAL FEATURES
Temperature Control
mK2000 with programmable precision switching PID method
Thermal Block
Silver
Temperature Minimum
-190°C (with optional liquid N2 cooling)
Temperature Maximum
600°C
Temperature Sensor
100 Ω Platinum RTD
Maximum Heating Rate
+200°C per minute at 100°C
Maximum Cooling Rate
-50°C per minute at 100°C
Minimum Heating and Cooling Rate
±0.01°C per minute
Temperature Resolution
0.01°C
Temperature Stability
±0.05°C (>25°C), ±0.1°C (<25°C)
Power Supply
Universal power input
Software
Windows compatible software to record and export temperature-time data; remotely control system via VCP connection (Virtual Comm Port)
-
OPTICAL FEATURES
Optical access
Reflection and transmission
Optical windows
Removable and exchangeable windows permit full-spectrum transparency
Minimum Objective Working Distance
10.5 mm
Minimum Condenser Working Distance
10 mm
Top Aperture
27 mm diameter
Top Viewing Angle
±57.5° from normal
Transmission Aperture
2 mm diameter
Bottom Aperture
27 mm diameter
Bottom Viewing Angle
±55.7° from normal
Window Defrost
Integrated external window defrost
-
STRUCTURAL FEATURES
Sample Area
24 mm x 24 mm
Chamber Height
6.5 mm without removable inner cover
2.5 mm with removable inner cover
Atmosphere Control

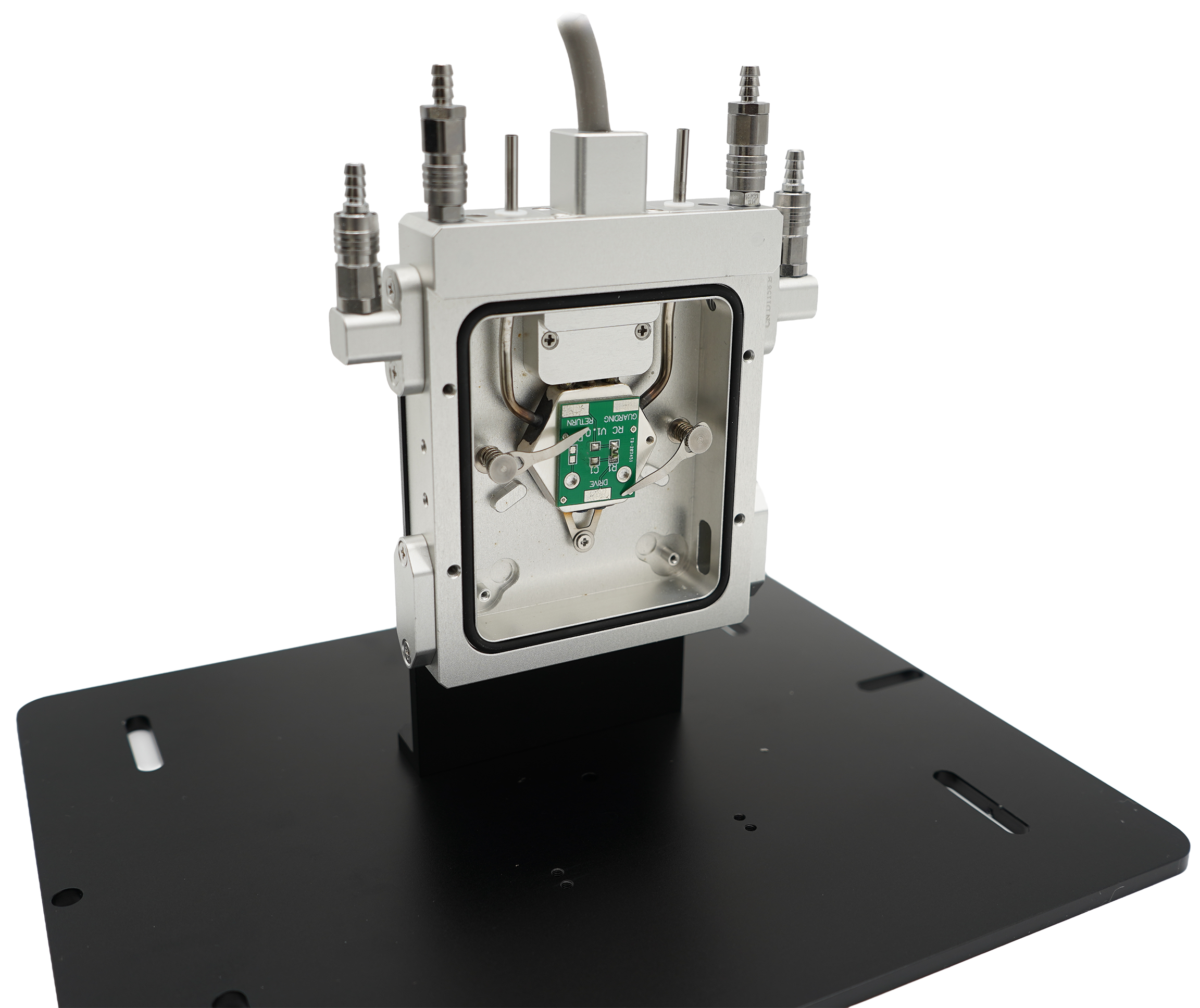

Sealed chamber with gas purging capability to control humidity, condensation, and oxidation
Frame Cooling
Integrated frame cooling channels with optional chiller system
Mounting

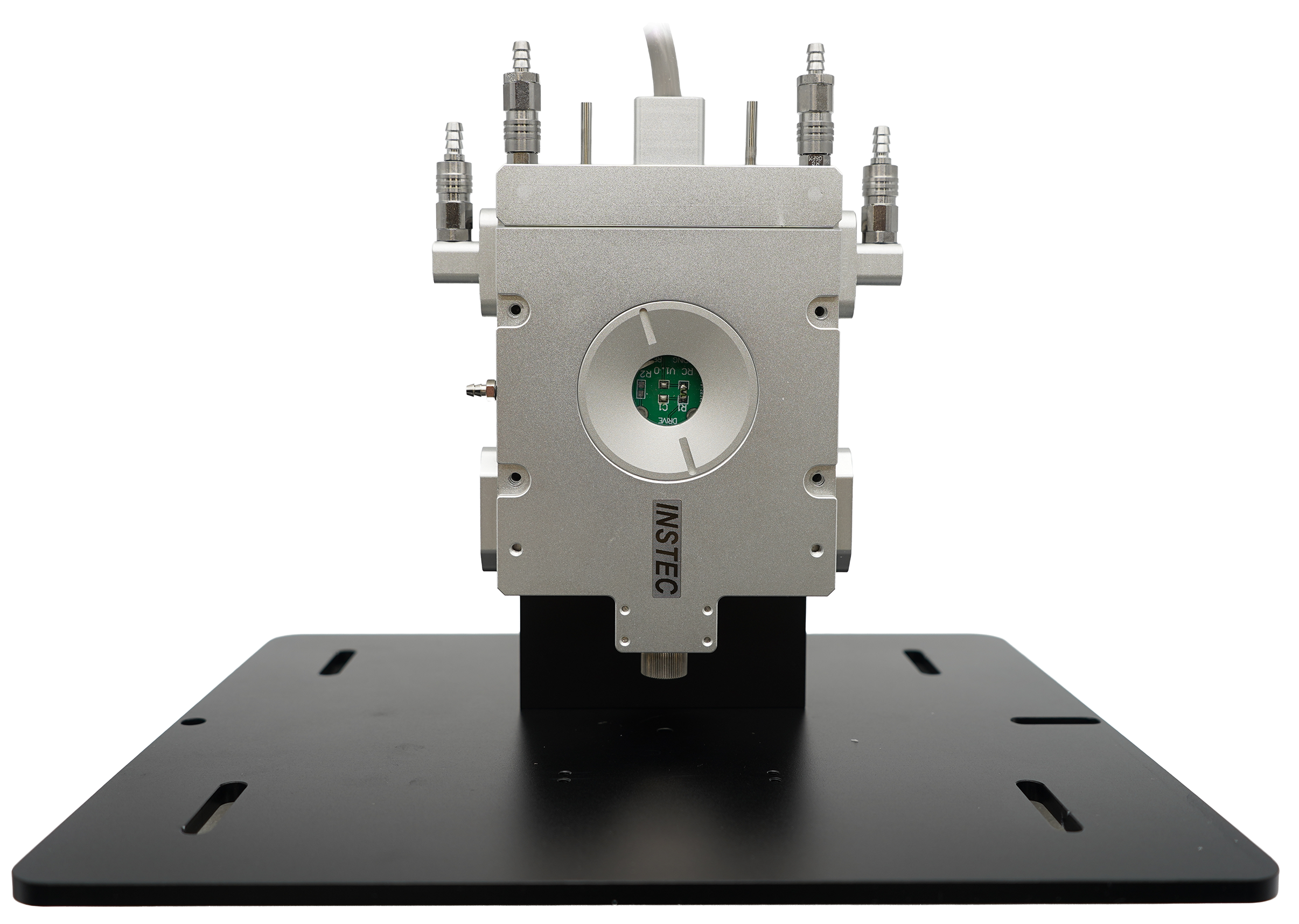

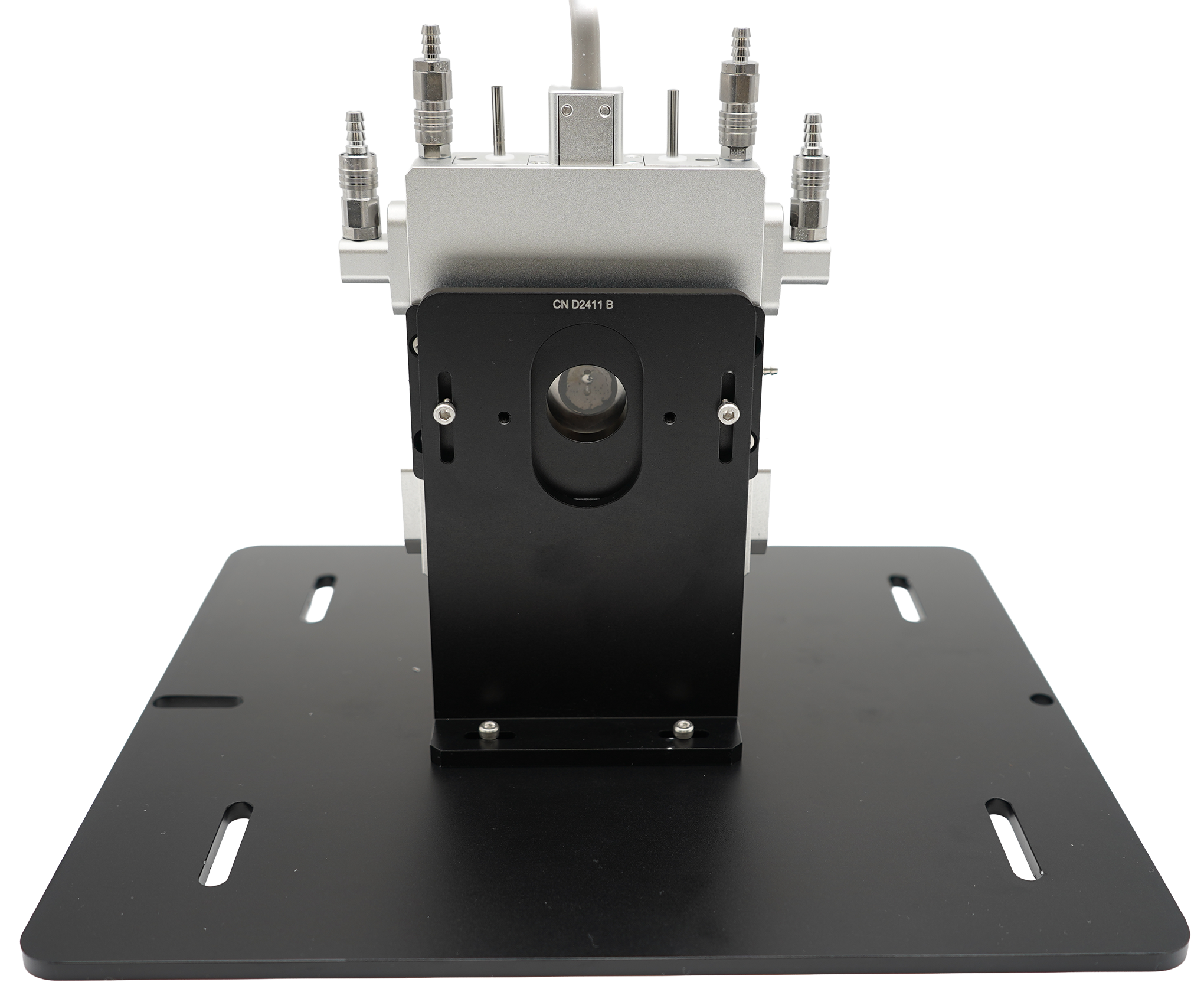

Horizontal and vertical mounting
Frame Dimensions
90 mm x 100 mm x 20.5 mm
Weight
500 g
